Underwater lights

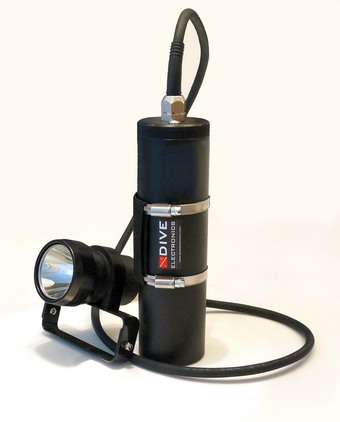

                  Dive Electronics - Alpha 2000

                         Технические характеристики:

Maximum luminous flux, Lm
1100
Opening angle of light beam, degrees
4
Rechargeable battery type
Li-ion
Rechargeable battery capacity (LI-ion)
110W*h

Operation time at the maximum power, (stable light intensity)

Operation time in the automatic power saving mode, (stable light intensity)

Operation time in the emergency mode

Full operating time

6h

2h

3h

11h

Operation time in the power saving mode, (stable light intensity)

Operation time in the automatic power saving mode, (stable light intensity)

Operation time in the emergency mode

Full operating time

12h

2h

3h

17h
Number of operation modes
4
LED indicator of the battery discharge
7 levels
Automatic power saving at the battery deep discharge (emergency mode)
yes
Wet contacts for charge. Do not need to open the canister
yes
Electronic short circuit protection and battery overdischarge
yes
Battery full charge time (by the prepacked charger)
6h



Alpha 2000 suitable for all types of diving. It has a narrow beam angle. It has very compact head light.











Operation principle of the indicator of the battery discharge








- all the three LEDs are constantly on, changing its color, as far as battery discharges, from green to yellow, from yellow to red.

- when all of LEDs turn red, the battery should be charged. Failure to do this will result in automatic switching to the power saving mode, 2 red LEDs will be blinking at that.

- if you still haven’t charge the battery after that, the light switches to the emergency mode with severe power saving. Only one red LED will be blinking at that and the light intensity will fade out:



To charge the battery you do not need to open the canister. Charging is made via the wet contacts. That excludes the possibility of leakage.
